Single cylinder cone crusher

Single cylinder cone crusher

Introduction of single cylinder cone crusher:
The FKD series single-cylinder cone crusher produced by Phoenix Mining Equipment (Shanghai) Co., Ltd. has the characteristics of optimized structural design, outstanding crushing capacity, reliable stability and low production and operation costs. Single-cylinder hydraulic cone crusher realizes various functions such as ore discharge adjustment, cavity cleaning, iron overload and overload protection through a single hydraulic cylinder lifting and moving cone. Single-cylinder hydraulic cone crusher can be widely used in various black, colored, non- Industrial fields such as metal mines and gravel.

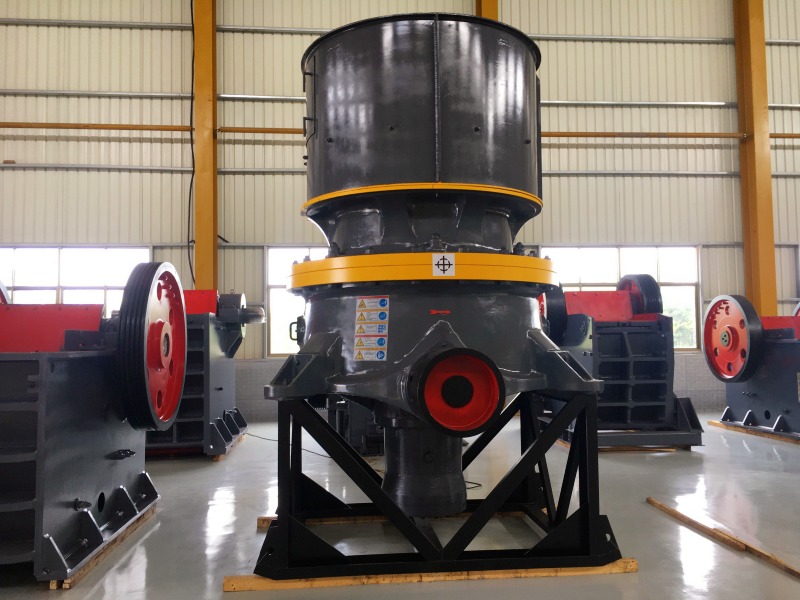

Single cylinder cone crusher

The principle of single cylinder cone crusher:
When the empty machine is running, the eccentric sleeve assembly "holds" the spindle assembly and revolves with the large gear. When the material is added to the crushing chamber, the spindle assembly (spindle, inner cone) is slowly in the eccentric copper sleeve under the resistance of the material Rotation. The running trajectory of the inner cone seems to swing back and forth in the crushing cavity while rotating slowly. The material is crushed by the swinging inner cone. The connection between the support sleeve and the frame body is pressed by the hydraulic cylinder. When the metal block and other unbreakable objects fall into the crusher, the moving cone of the single cylinder is lifted by the hydraulic piston at the bottom, which plays the role of discharge port adjustment and iron protection. Lifting and removing the function of blocking the mine.
The adjustment of the size of the discharge port: the first function of the bottom hydraulic cylinder is to adjust the up and down position of the main shaft, thereby adjusting the spacing between the moving cone and the outer cone lining plate. The smaller the spacing, the smaller the output size of the crusher; the larger the spacing, the larger the output size of the crusher. At the same time, choosing different crushing cavity types and different eccentric sleeves can also change the material discharge size.

Features of single cylinder cone crusher:
1. The upper and lower ends of the main shaft of FKD series single-cylinder cone crusher are supported, can withstand greater crushing force and greater stroke, plus the special crushing cavity shape suitable for the lamination principle, compared with ordinary cone crusher With higher crushing efficiency;
2. The FKD single-cylinder hydraulic cone crusher combines the perfect combination of crushing stroke, crushing speed and crushing chamber shape, so that the output of the machine is 35% higher than that of the old-fashioned spring cone crusher when the diameter of the large end of the moving cone is the same. %;
3. The hydraulic cone crusher adopts the unique crushing cavity shape and lamination crushing principle to produce the crushing effect between the particles, so that the proportion of cubes in the finished product is significantly increased, the needle flakes are reduced, and the particle size is more uniform;
4. FKD single-cylinder cone crusher has medium and fine crushing with multiple cavity shapes, which can be achieved only by replacing the fixed cone;
5. The hydraulic and lubrication system with double insurance control can ensure the overload protection and good bearing lubrication of the machine;
6. Easy maintenance: The single-cylinder cone crusher is simple and compact in structure, stable in performance, not easy to malfunction, and convenient and fast in maintenance.

Single cylinder cone crusher parameters:
Model Power
（kw）		 Chamber Type Max Feed Size
（mm）		 CSS Discharge Opening &Standard Capacity（t/h）
6 8 10 13 16 19 22 25 32 38 44 51
FKD-44 250 Supper Coarse 217 - - - - 115-202 123-279 132-297 140-316 160-360 177-399 - -
Coarse 177 - - - 102 110-220 118-295 126-316 135-336 153-382 169-339 - -
Medium Coarse 142 - - - 98-124 107-266 115-286 122-305 130-325 148-333 163-245 - -
Medium 112 - - - 119-190 128-283 138-303 148-324 157-345 179-286 198 - -
Medium Fine 87 - - 117 127-232 137-251 147-269 157-288 167-306 190-254 - - -
Fine 72 - 93-139 99-181 107-196 115-212 123-227 133-243 141-258 160-214 - - -
SupperFine 40 100 125 - - - - - - - - - -
FKD-53 315 Supper Coarse 280 - - - - 180 193-344 207-444 220-472 250-557 277-616 303-674 334-520
Standard Supper 250 - - - - 178-198 191-382 204-498 216-530 247-604 273-667 299-532 330-361
Coarse 220 - - - - 175-194 188-376 201-491 214-522 244-596 269-658 295-524 324-361
Medium Coarse 180 - - - - 167-260 179-438 191-468 204-498 232-568 256-513 281-374 -
Medium 140 - - - - 204-306 219-456 234-487 249-519 284-521 313-418 - -
Medium Fine 120 - - - 200 216-385 232-413 247-441 263-470 299-471 332-379 - -
Fine 90 - - - 206-322 222-347 238-373 255-398 271-424 309-425 342 - -
Supper Fine 70 - - - 227-316 244-340 263-321 281-312 - - - - -
FKD-870 500   80-330 1、Adjustment Range Of Discharge Opening 10-60mm         2、Capacity  500-1200t/h          3、Weight  59t

Model Power
（kw）		 Chamber Type
Max Feed Size
（mm）		 CSS Discharge Opening &Standard Capacity（t/h）
19 22 25 29 32 35 38 41 44 48 51
FKD-44S 250 Supper Coarse 400 - - - -   267 282-353 298-446 313-563 334-601 349-534
Coarse 350 - - - 225 239-299 254-381 269-484 284-511 298-448 318-398 333
Medium Coarse 300 - - 195 214-267 228-342 242-435 256-461 270-486 284-426 303-378 317

Model Power
（kw）		 Chamber Type Max Feed Size
（mm）		 CSS Discharge Opening &Standard Capacity（t/h）
38 41 44 48 51 54 60 64 70 76 83
FKD-53S 315 Supper Coarse 450 - 349 368-460 392-588 410-718 428-856 456-929 489-978 525-1050 562-983 604
Coarse 400 318 336-420 353-618 376-753 394-788 411-823 446-892 469-822 504-631   -
Note: Parameters are subject to update without notice, please contact us.

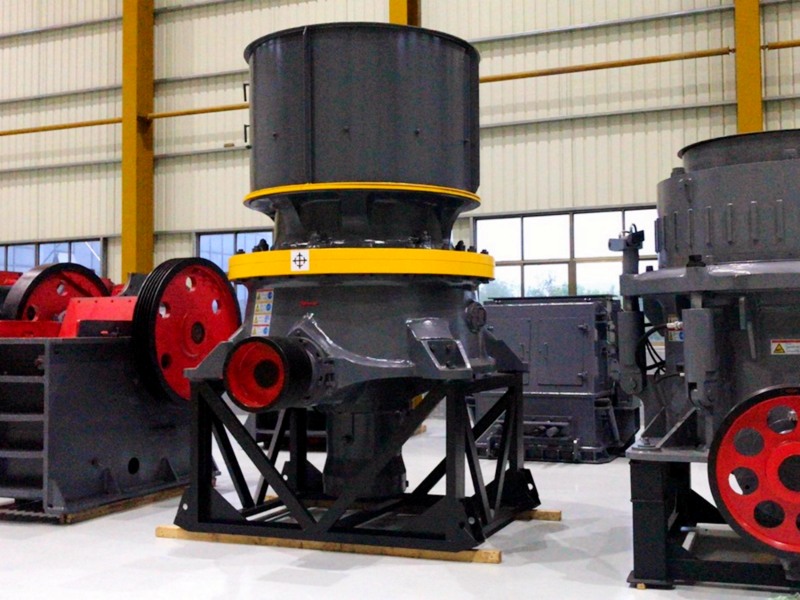

Picture of single cylinder cone crusher:

Single cylinder cone crusher


Single cylinder cone crusher product sample download:
Single cylinder cone crusher product sample
